COOLANT FITTING
HEX 2" x OD 38mm x AN16 (1-5/16UN12), OA LENGTH 60mm
MATERIAL: BILLET 6061 ALUMINIUM
ANODISED - SMOKEY DARK BLUE

COOLANT FITTING
HEX 2" x OD 36mm x AN16 (1-5/16UN12), OA LENGTH 60mm
MATERIAL: BILLET 6061 ALUMINIUM
ANODISED - SMOKEY DARK BLUE

COOLANT FITTING
HEX 2" x OD 40mm x AN16 (1-5/16UN12), OA LENGTH 60mm
MATERIAL: BILLET 6061 ALUMINIUM
ANODISED - SMOKEY DARK BLUE

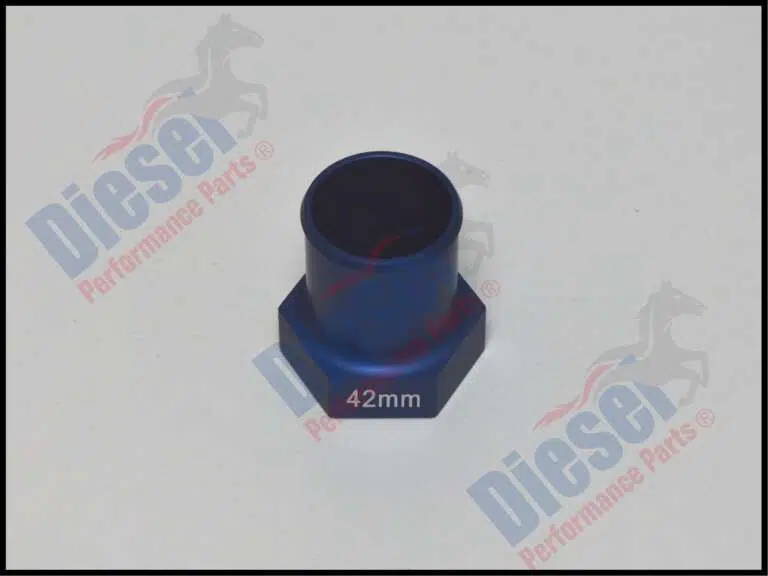

COOLANT FITTING
HEX 2" x OD 42mm x AN16 (1-5/16UN12), OA LENGTH 60mm
MATERIAL: BILLET 6061 ALUMINIUM
ANODISED - SMOKEY DARK BLUE

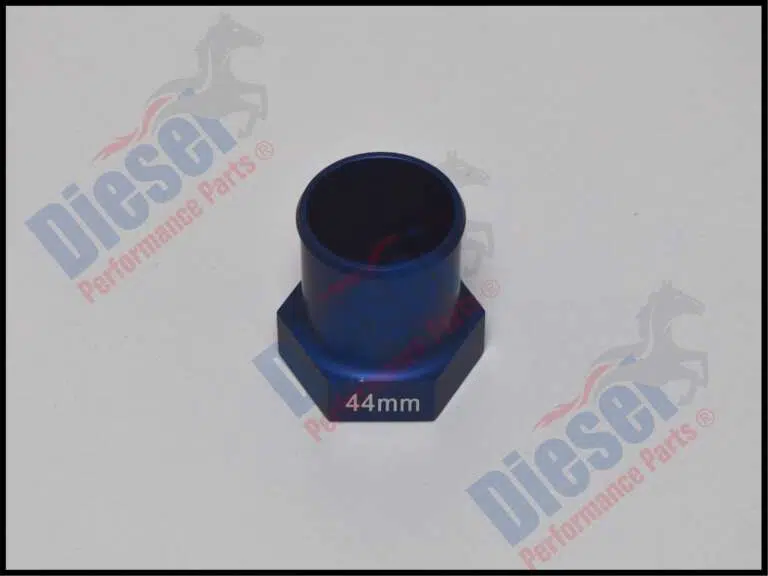

COOLANT FITTING
HEX 2" x OD 44mm x AN16 (1-5/16UN12), OA LENGTH 60mm
MATERIAL: BILLET 6061 ALUMINIUM
ANODISED - SMOKEY DARK BLUE

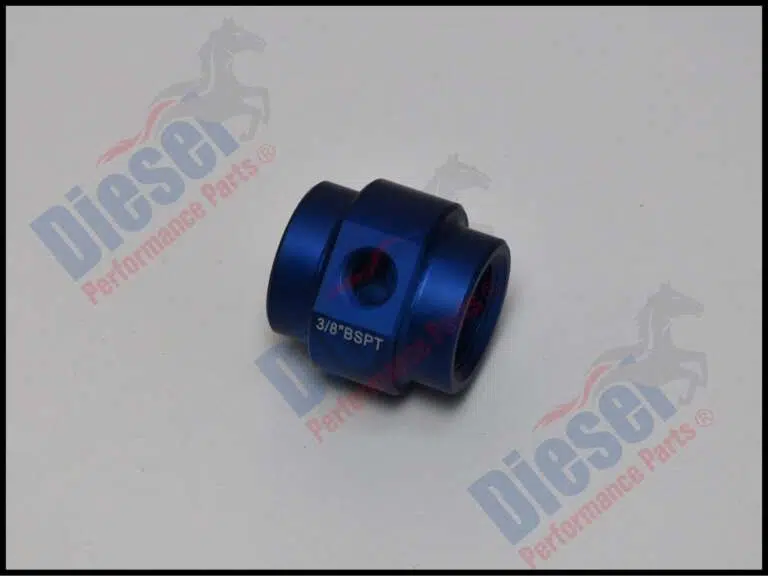

HUB
OD 56mm x 49.6(FLAT) x 3/8 PT19 x AN16 (1-5/16UN12) OA LENGTH 55mm
MATERIAL: BILLET 6061 ALUMINIUM
ANODISED - SMOKEY DARK BLUE

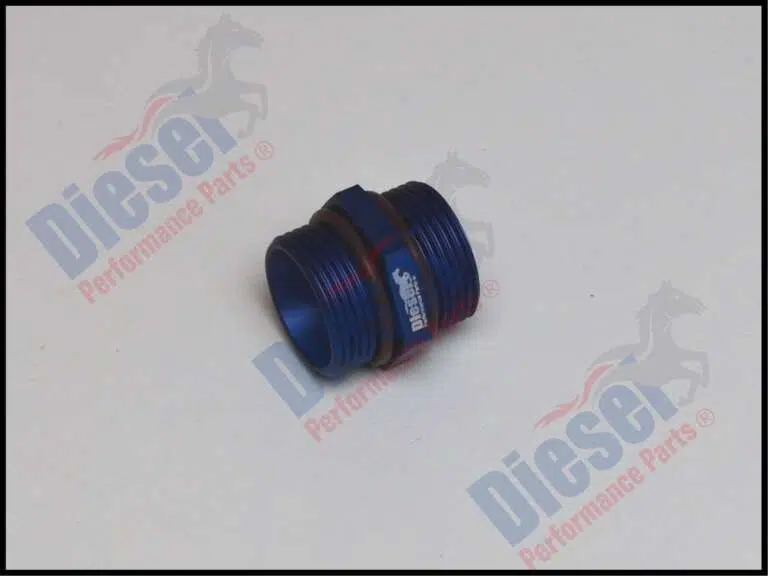

MALE COUPLER
HEX 1.5" x ID 21.5mm x AN16 (1-5/16UN12), OA LENGTH 37mm
VITON O-RINGS, QTY 2, ID = 30mm, THICK = 3mm
MATERIAL: BILLET 6061 ALUMINIUM
ANODISED - SMOKEY DARK BLUE

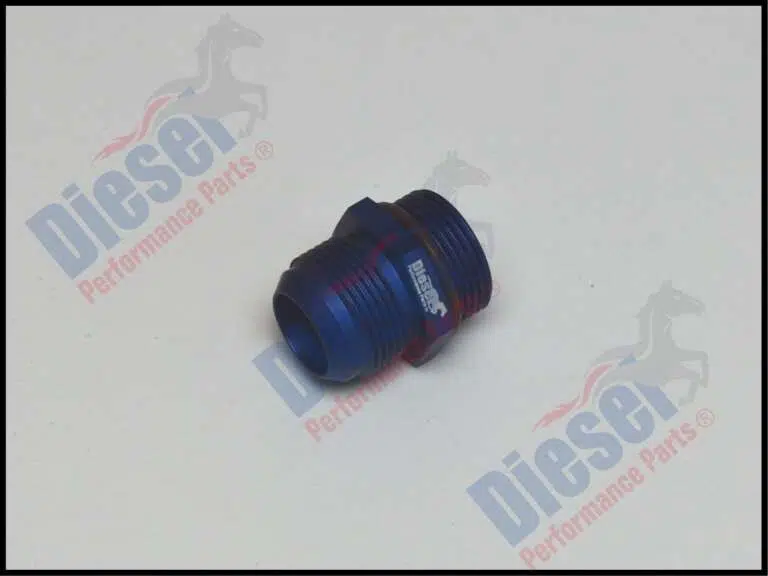

ORB TO MALE ADAPTER
HEX 1.5" x ID 21.5mm x AN16 (1-5/16UN12), OA LENGTH 45mm
VITON O-RING, QTY 1, ID = 30mm, THICK = 3mm
MATERIAL: BILLET 6061 ALUMINIUM
ANODISED - SMOKEY DARK BLUE
